The GIP335 is a network output camera integrated with a 9x digital zoom and a high-precision professional three-axis stabilized gimbal.
Fixed focus visible light camera
9X digital zoom
3-axis stabilized gimbal
Control via network, S.BUS and UART
Ultra-lightweight at 60g
The gimbal uses a Hall effect scheme, characterized by high stability, small size, light weight, and low power consumption. Network, serial port, and S Both BUS can control the camera and gimbal, and support local TF card storage.
$582
90x Hybrid zoom
IRCUT Day night mode
Network, SBUS, UART control
Light weight gimbal, 425g
$193
Fixed focus visible light camera
9X digital zoom
3-axis stabilized gimbal
Ultra-lightweight at 60g
$366
4K visible light
Supports 7x digital zoom
Network, S.BUS and UART controlsd
3-Axis stabilized gimbal,120g

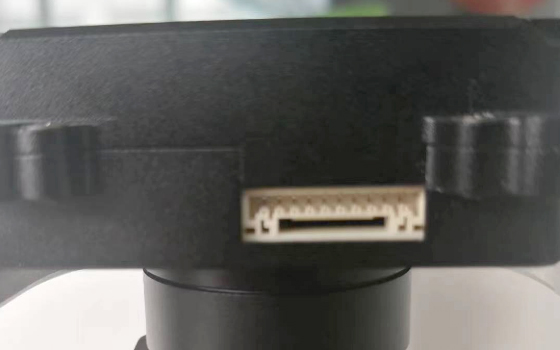

As shown in the picture, the four sockets on the left are network sockets, the two sockets in the middle are SBUS and GND, and the ones on the far right are GND and VCC.
The live streaming Gimbal camera needs to be connected through a network cable for a TP LINK.

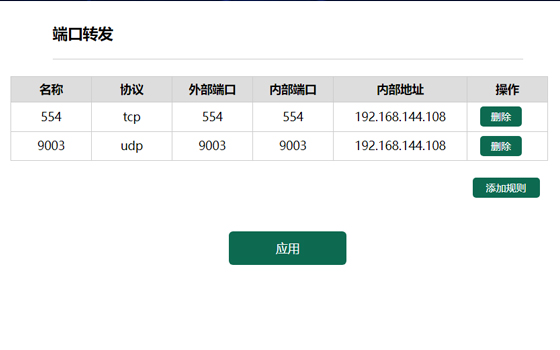

Map external port 544 to internal network 544 (TCP), external port 9003 to internal network 9003 (UDP), and the internal IP is the default IP address of Gimbal camera.
