The main product of the 5X series is the dual beam DHU05G609, which integrates a 45X hybrid zoom camera, a 640x512 thermal imager, and a high-precision professional three-axis stable gimbal. The entire series is equipped with AI recognition and tracking, which can recognize up to 100 targets and track a minimum size of 16 * 16 pixels.
Purchased Product5X HD optical zoom lens,f=5士10%~25士10%mm.
D:WIDE 61.1° TELE 12.41°,H:WIDE 50.12° TELE 10.81°,V:WIDE38.07° TELE 8.13°.
RTSP 1080P and Local TF 1080P record,Focusing time less than 1s.
9.lmm Lens; FOV: 45.76°x 37.3 1°，Uncooled Vanadium Oxide Detector.
Identify up to 100 targets, occlude for 2 seconds, track as Human and Vehicle.
1200 meter OR 1500 meter laser ranging,Laser wave：905nm(class 1 laser).

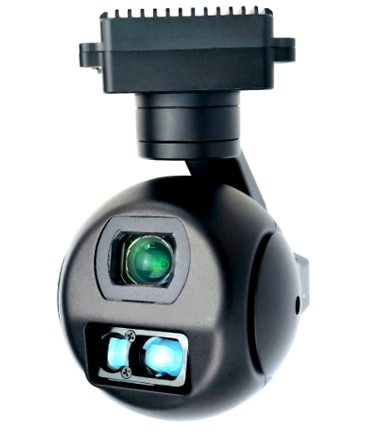

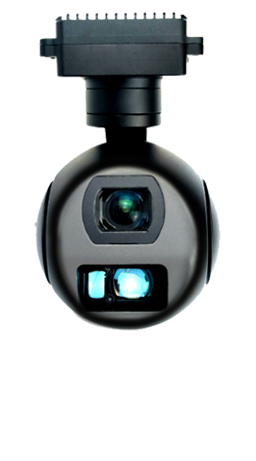

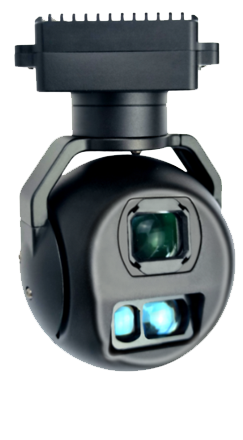

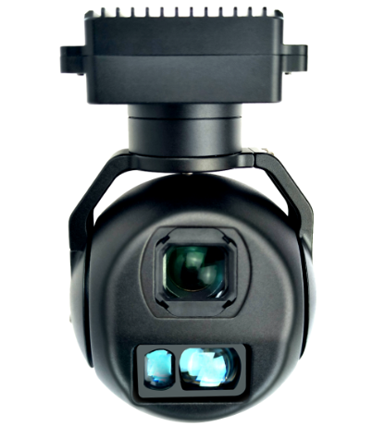

DYD05L12 is a high-precision two-axis stabilized camera gimbal integrated with a 45X hybrid zoom visible camera and a 1200m laser range finder, for providing high stability, tiny figure, light weight and low power consumption. The camera uses a 4 mega pixels sensor and supports UART, S.BUS and IP control, back up with TF card pictures and videos storage. The system supports RTSP video format and both IP output.

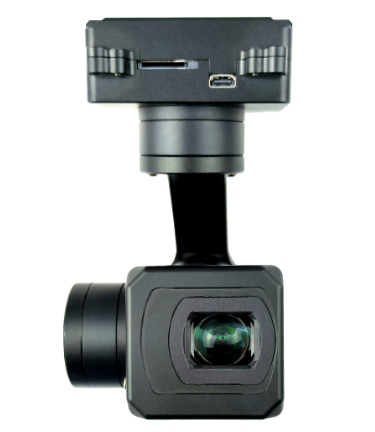

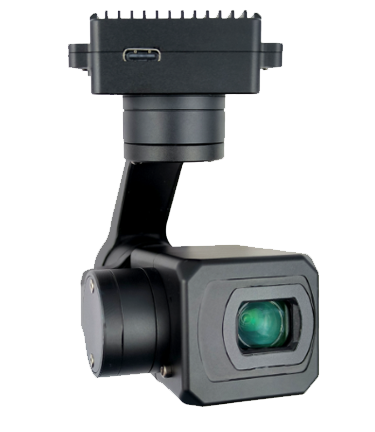

DIU05S35 is a single zoom gimbal that integrates 45x hybrid zoom camera and high-precision professional 3-axis stabilization PTZ. It adopts IP output, IP control, adopts high-precision encoder FOC control scheme PTZ.

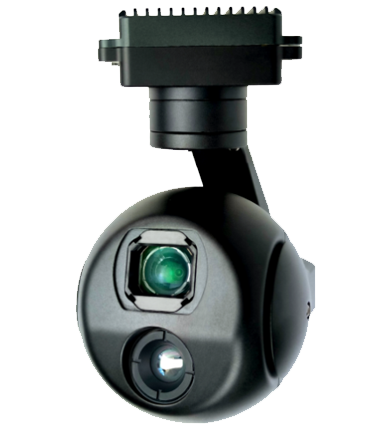

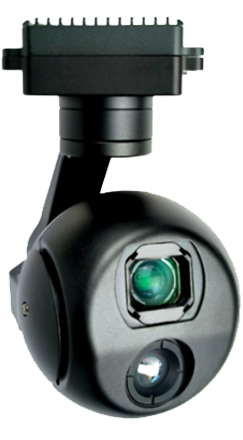

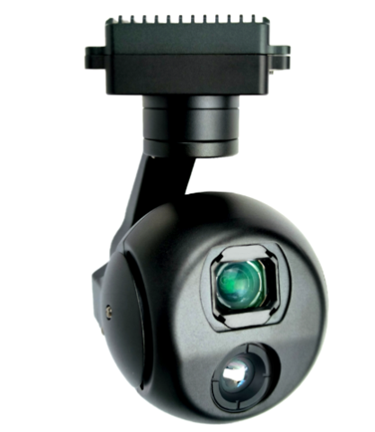

DHU05G609 is a dual light small gimbal that integrates 45x hybrid zoom camera, 640x512 thermal camera, with a high-precision professional 3-axis stabilization PTZ. It adopts IP output, IP control, adopts high-precision encoder FOC control scheme PTZ.
